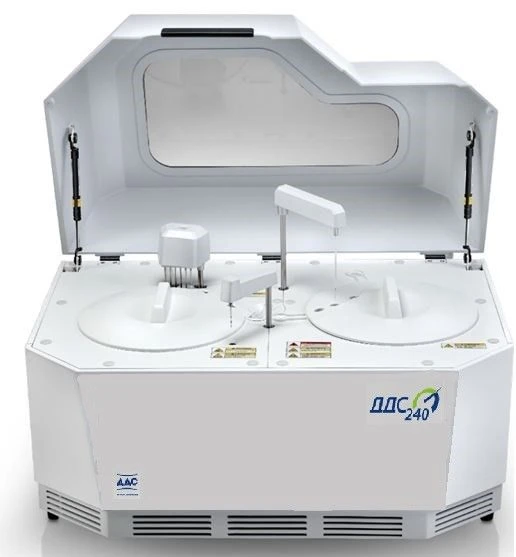

Automatic Biochemical Analyzer DDS-240 with Accessories TU DALE.941412.002TU

Available for Import

Automatic Biochemical Analyzer DDS-240 for Efficient Testing and Analysis

Diagnostic Medical Devices

Manufacturer: DIAKON-DS OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The first fully domestic analytical system with a capacity of 240 tests per hour.-Analyser and reagents produced by JSC "DIACON-DS" (Russia).-System barcoded vials without transfusion.-Automatic accounting of test statistics and costs. -Voice and sound notifications.-Maximum security in auctions.-Always available in DIACON JSC warehouse.Optimal in laboratories with low and medium productivity 50 - 100 patients per day for 8 - 12 parameters (about 500 biochemical tests per day).Can be used as the main analyser in small, express laboratories and as an auxiliary analyser in laboratories with high productivity.

Specifications

Number of tests performed/h

240 pcs

Power consumption, VA

350

Weight of the equipment, kg

75 kg

Dimensions of the equipment (height x length x width), mm

580x855x550

Light source

Long life halogen lamp

Length of optical path, mm

5 mm

Operating wavelengths

8 pieces in the range 340 - 670 nm

Performance

240 tests/ per hour (in monoreagent (fast) mode)

Number of rotors

1 ротор

Number of dosing devices

Single sample and reagent dispenser

Number of cuvettes in the reaction rotor

81 (9 cuvettes/section x 9 sections)

Mixing device

Separate mixer mixing the reaction mixture inside the cuvette

Types of analyses

Photometric analysis, turbidimetry

Automatic dilution of biomaterial on board of analyser

availability

Connection to LIS

availability

Barcode scanner for tubes and/or reagents

Availability of an inbuilt barcode scanner for samples and reagents.

Automatic detection of reagent information by barcode

Availability (identification of reagent name, vial volume, reagent type, reagent lot, expiry date, number of samples/reagents remaining)

Automatic detection of liquid level

Presence (built-in capacitive liquid level sensor for reagent/sample)

Blocking of test execution when a mechanical obstacle is detected (collision protection)

availability

Minimum amount of sample required for measurement, µl

Step of sample dispensing volume, µl

0,1

Type of biomaterial

Serum, plasma, urine, cerebrospinal fluid

Maximum number of samples to be loaded on board the analyser at one time, pieces

40 pcs

Maximum number of different tests that can be performed on the analyser without changing reagents

40 pcs

Use of primary tubes without adapters

Availability (tube diameter range 12 - 13 mm, length range 68.5 - 100 mm)

Reusable UV permeable plastic reaction cuvettes

availability

Automatic reaction cuvette washing with drying function

Presence of automatic cuvette washing station on board the analyser (6 cleaning steps using different washing solutions).

Automatic internal and external flushing of the metering unit

availability

Detector type

Photodiode array, dichroic mirror system

Urgent sample measurement, interruption of analyser operation for urgent sample measurement

availability

Minimum dosing volume of reagent, µl

150

Maximum dosing volume of reagent, µl

450

Reagent volume step, µl

Display of response graphs

Presence (displaying on the screen a graph of change of optical density in the cuvette over time)

Water consumption litres per hour

Monitoring of analyser lamp stability

availability

Reaction cuvette transparency monitoring

availability

Monitoring of the analyser main units

availability

Built-in quality control programme

Availability, automatic determination of mean value, standard deviation, coefficient of variation, range

Calibration variants

By factor, linear, polygonal, log-logit, exponential, spline and spline 2.

Setting and displaying calibration parameters

Presence (calibration curve display on the screen. Calibration type selection)

Unified data exchange protocol

availability

Duration of warranty period

12 months

Type of reagent/sample rotor

Swivelling, removable

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
