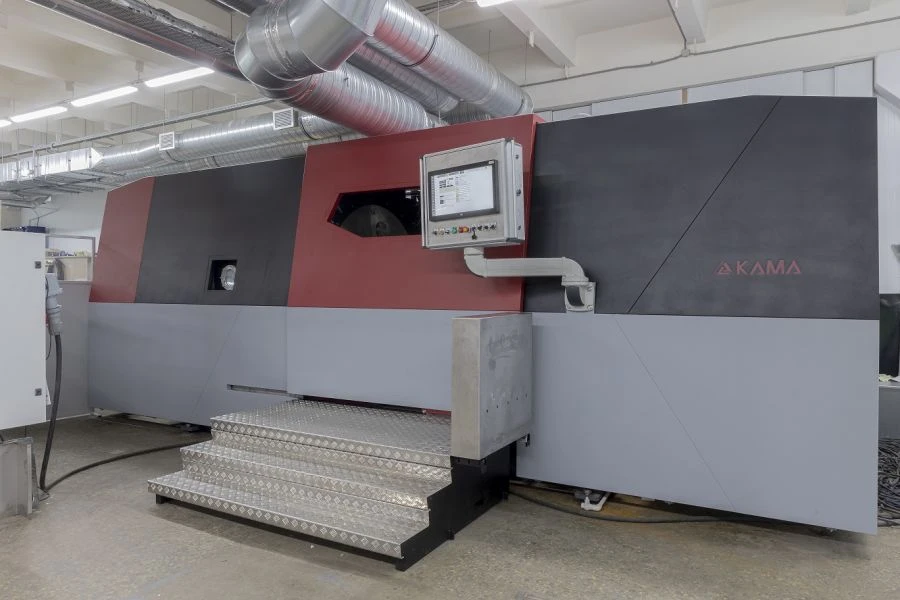

Automated Installation for Fluorescent Capillary Testing with 1500mm Turntable KAMA-1600

Automated Installation for Fluorescent Capillary Testing with 1500mm Turntable KAMA-1600

Brand: KAMA

$42,000 - $150,000 USD

MOQ: 1 pieces

Supplier Information

ACTIVTESTGROUP LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from KAMA

Automated Fluorescent Capillary Testing System KAMA-1500

$48,000-$150,000

Automated Fluorescent Capillary Testing Unit KAMA-800

$30,000-$96,000

Automated Luminescent Capillary Testing System KAMA-400

$15,000-$48,000

Automated Fluorescent Capillary Testing System KAMA-2000

$90,000-$300,000

Automated Capillary Testing System for Fluorescent Inspection KAMA-1000

$15,000-$48,000

Automated Fluorescent Capillary Testing System KAMA-600

$27,000-$72,000

Description

KAMA-1600 units are designed for non-destructive capillary control of various with the help of penetrating substances. Diameter of the rotary table for placing parts - 1500 mm. Materials of products - stainless steels and non-ferrous alloys. The control is carried out by a set of flaw detection materials LUM33-OV according to 1 conventional level of sensitivity according to GOST 18442-80 (especially high level according to OST 1 90282).

The unit provides detection of defects coming to the surface with minimum opening width of 1 micron and less. Climatic execution - UHL 4.2 in accordance with GOST 15150-69. FPI: All-in-VAC technological solutions implemented in the units allow to perform all stages of capillary inspection sequentially in a single compact space of one unit. KAMA trademark is the property of "ActiveTestGroup" LLC, which is confirmed by Certificate No.

697073. FPI: All-in-VAC trademark is the property of "ActiveTestGroup" LLC, which is confirmed by Certificate No. 6903722.
