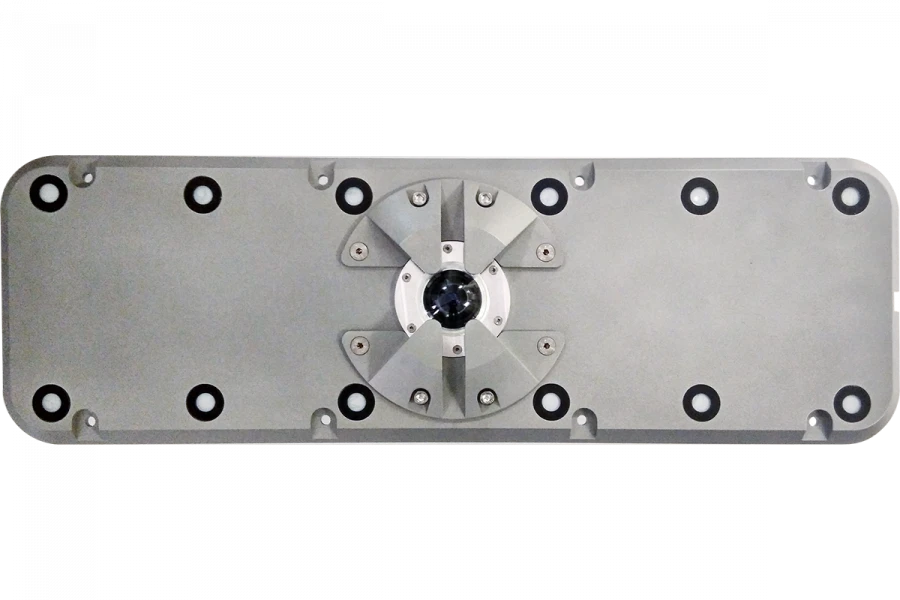

Automated Inspection System for Vehicle Undercarriages SecurOS UVSS - Enhance Security and Safety

Wearable Video Systems

Manufacturer: ISS-INTEGRATOR LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The SecurOS UVSS hardware and software complex for automated inspection of vehicle underbodies is a highly effective and easy-to-use system for remote visual inspection of vehicle underbodies to detect objects that are not part of the structure. SecurOS UVSS generates a library of high-resolution "reference" underbody images with their linkage to recognised vehicle numbers for further comparison of passing vehicles and selection of fragments requiring operator's attention. The complex is designed for round-the-clock continuous operation.

Solved tasks 1.Detection of prohibited items (e.g. counterfeit goods) as well as people 2.Significant reduction of time for inspection procedures 3.Minimising the influence of human factor on the inspection results 4.Ensuring the safety of personnel during inspection procedures. Advantages -Compact UVSS platform does not require labour...

Specifications

Housing material

Aluminum

Video camera type

Colored

Resolution of the resulting image

19mp

Depth of field

1 m

Depth of color

B1/B8 2100/900 MHz

Viewing angle

From 170° to 186°

Diaphragm variation range

f1;8 … f16

Color temperature range

3600-5000?

Number of backlight LEDs

B1/B8 2100/900 MHz pcs

Backlight control

program

Illumination type

led

Power consumption

SBVVBG W

Preservation of serviceability at voltage fluctuations in the power supply network

100...240 V

Диапазон рабочих температур,

From -40 to +60 °C

Protection class

ip68

Weight

17 kg

Overall dimensions (WxHxH)

970x196x310 mm

Overall dimensions (WxHxH)

970x196x600 mm

Weight of inspected transport

48 t

Speed of vehicle passing over the sensor

1...20

Vehicle ground clearance

65 mm

Maximum width of the vehicle chassis

4400 mm

Determination of the beginning and end of a vehicle journey

??????????????

Automatic recognition of passing vehicles

Armoured glass

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
