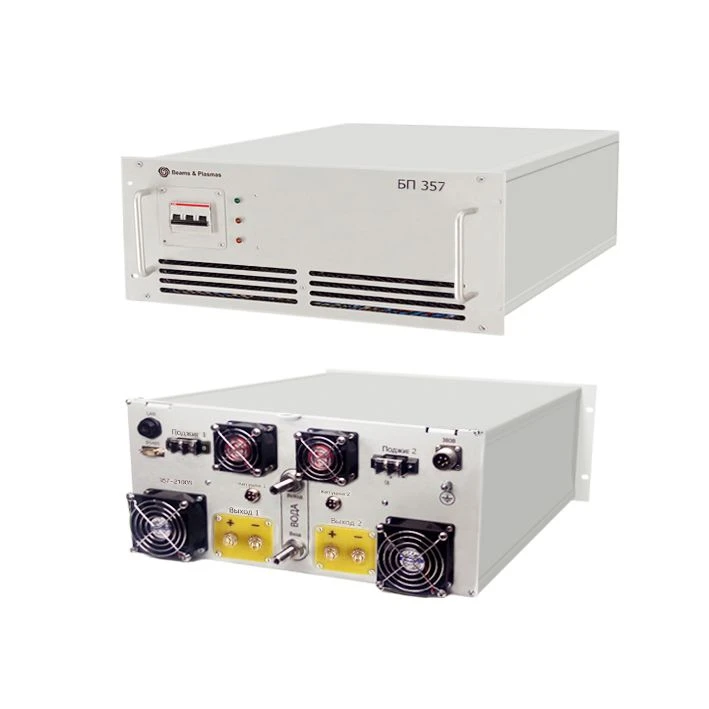

Arc Evaporator Power Supply BP-357 (2 Outputs x 2 Coils x 2 Ignitions)

Available for Import

Arc Evaporator Power Supply BP-357 for Controlled Power Delivery

Electrical Interface Devices

Manufacturer: LVT+ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The power supply unit is designed for regulated direct current power supply of two arc evaporators. The power supply unit is equipped with: <ul> <li>- control and monitoring system of two current channels (2 outputs of 100A each)</li> <li>coil stabilisation system (2 coils)</li> <li>focussing arc ignition system (2 igniters)</li> <li>RS-485 interface for communication with a computer</li> <li>Modbus RTU protocol control</li> <li>LAN network connector</li> </ul> Operation Manual is available on request: LCMK.357.00.00.00.00.000 RE POWER SUPPLY UNIT OF BLOW SOURCE Vaporiser BP-357. It is allowed to deliver the device as a part of the installation without packing.

On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Supply of regulated DC voltage power to two arc evaporators used in vacuum coating systems.

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Type of construction

Built-in

Front control panel

Mode of operation

continuous

Cooling

water

Coolant (recommended)*

distilled water, 20% solution of ethyl alcohol in distilled water according to GOST 6709-72

Warranty period

1 year

Power supply voltage

380 ±10% V

Output current variation range

20-100 A

Maximum power consumption, max.

8 kW

efficiency, at least

0,85

Arc current source: No-load output voltage

85 ±5% V

Arc current source: Output current variation range

20-100 A

Arc current source: Amplitude of output current ripple, not more than

5 %

Arc current source: Discreteness of output current variation, not more than

2 A

Arc current source: Output voltage at arc discharge, at In=80 A

25-40 V

Ignition source: Voltage of initiating pulses, not less than

600 V

Ignition source: Frequency of initiating pulses

Ignition source: Initiation pulse energy, not less than

2,5

Magnetic coil current source: Maximum coil current

5 A

Magnetic coil current source: Number of coil control outputs

2 pcs

Magnetic coil current source: Maximum output voltage

24 V

Magnetic coil current source: Current control discreteness mA

Magnetic coil current source: Current stabilization accuracy, not worse than

2 %

Interface

RS-485

Data transfer protocol

ModBus RTU

Overall dimensions, (length x width x height)

485x485x221 mm

Weight, not more

24 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
