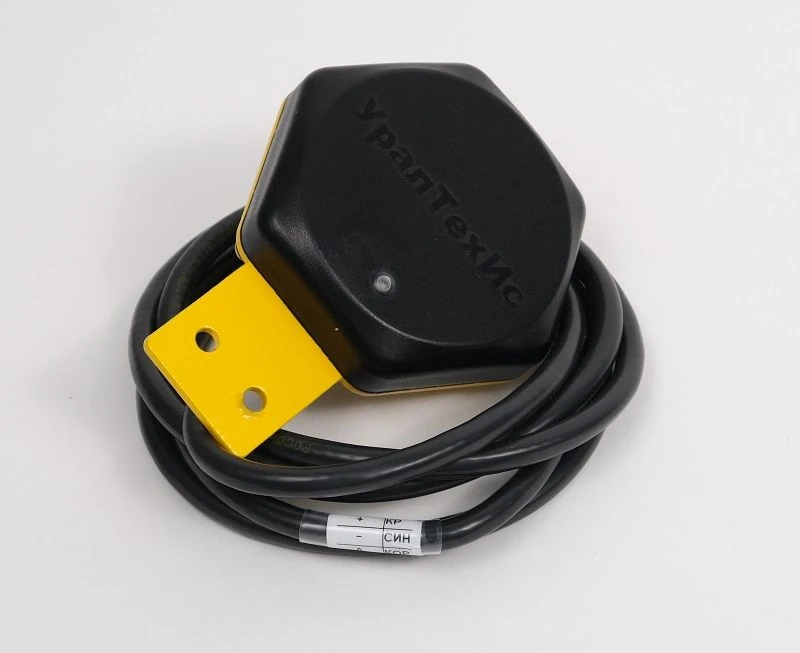

Antenna repeater (repeater) TIS 14.5.0.00.000-01

Antenna repeater (repeater) is installed on intra-mine transport (IMT) and is designed to receive numbers of positioning system tags in one zone and transmit these numbers to another zone, which are not connected with each other by direct line of sight (e.g. for registration of positioning system tags embedded in the SUBR-02SM radio unit, which are in the closed, armoured body of the machine); for re-radiation of tag numbers, which are in the invisible zone for mobile registration devices MUR-T). It is an electrical connection between two or more AFAZP antennas of any modification (AFAZP with one radiating element or AFAZP4 with four radiating elements) in the zone positioning system, or an electrical connection between two or more AFATP antennas (AFATP version TIS 2.1.9.04.000 or version TIS 2.1.9.04.000-01 or version TIS 2.1.9.04.04.000-02) in the precision positioning system.
