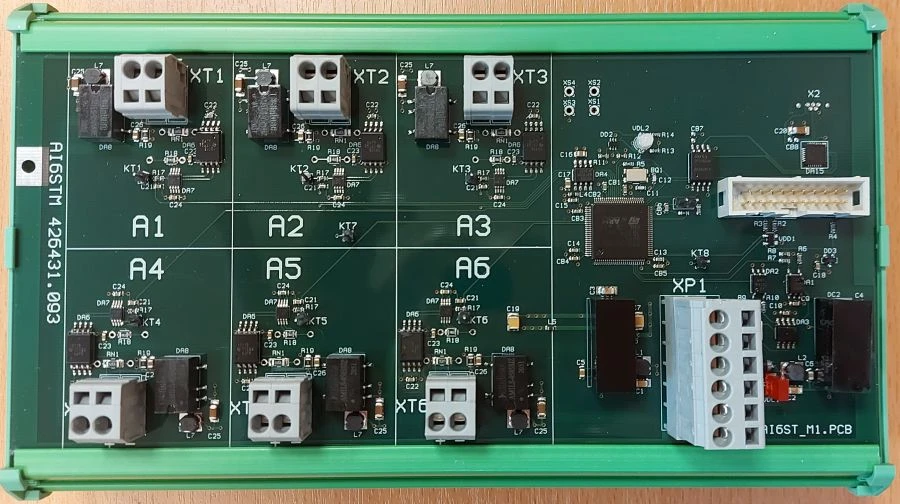

Analog Signal Input Module AI6-STM 426431.093 for Measuring Sensor Signals

The unit is designed to measure six analogue signals from 4-20 mA sensors, galvanically isolated from each other and the block controller, and transfer their values to the controller via CAN-1 interface, also galvanically isolated. The test voltage of the input circuits is 1.5 kV. The input resistance of each input is 100 Ohm.

The measured signal values are transmitted to the controller with a period of 100 ms. A three-colour LED is used to indicate the status of the unit. The unit is powered with 24 V voltage from the regulator.

The unit is designed as a printed circuit board mounted on a DIN-rail. Warranty period - 36 months from the date of shipment to the factory Electrosila.
