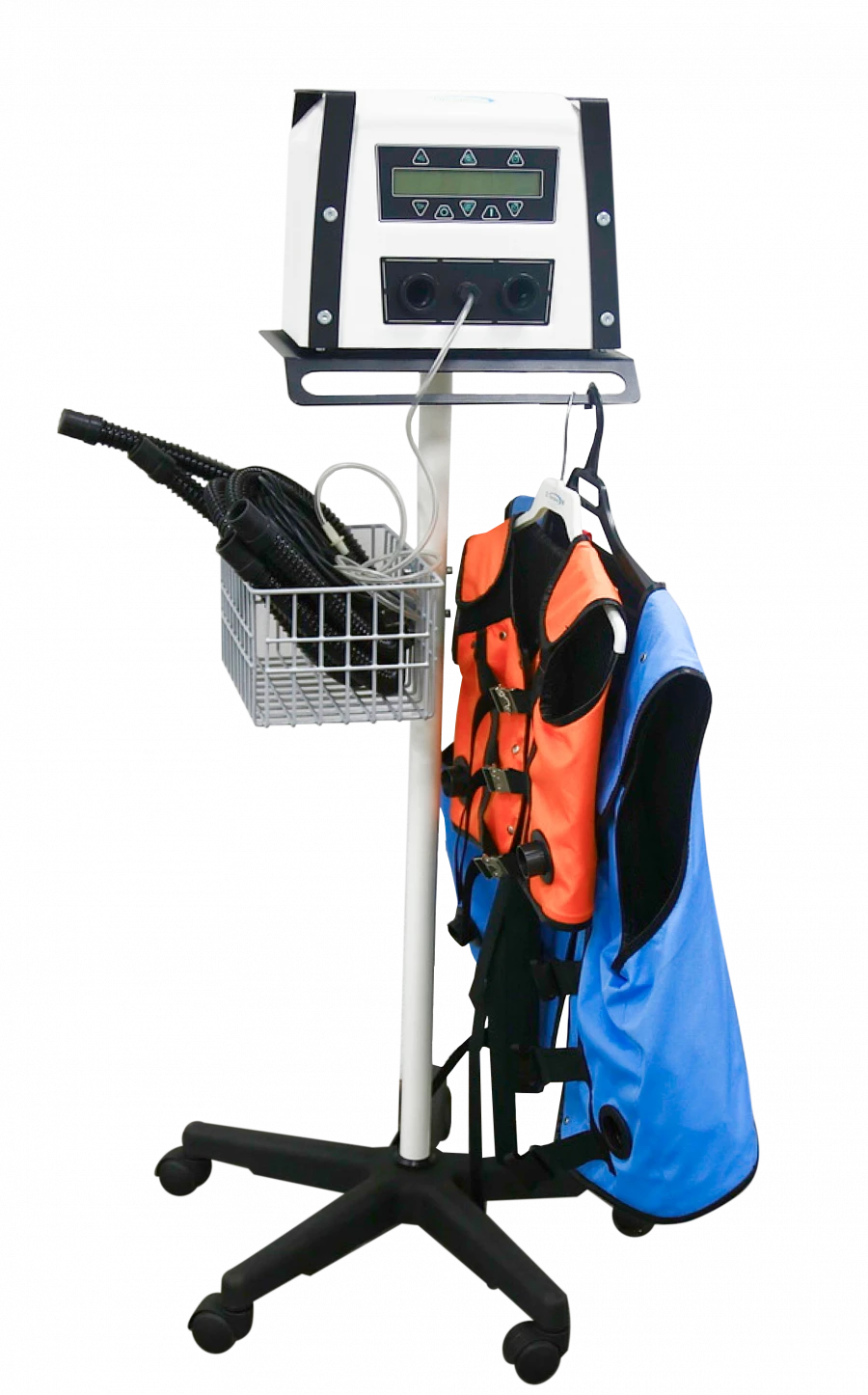

Airway Clearance System "Ortorent" Model ORTO.941568.001

Available for Import

Airway Clearance System "Ortorent" for Effective Respiratory Therapy

Frequency Therapy Devices

Manufacturer: Ortorent LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The product is designed for effective therapy for clearing the respiratory tract from pulmonary secretions by means of forced high-frequency low-amplitude chest wall oscillations. In general, the product consists of an inflatable waistcoat, a compressor generating air pulses, a power cable, and connecting hoses. The compressor inflates the waistcoat by rapidly changing the air pressure in the waistcoat. This produces a rhythmic squeezing effect on the patient's chest, mimicking a natural cough. As a result of this process, thick mucous secretion (sputum) liquefies, separates from the bronchial walls and moves to the central, larger parts of the respiratory tract, from where it can be easily removed by normal coughing or aspiration. Airway clearance therapy of this type is called high frequency chest wall oscillation (HFCWO).

Specifications

Width

340 mm

Power supply voltage

220 V

Weight

14 kg

Accessory kit

Transport bag;Stand for airway clearance system "Ortorent";Adjustable inflatable waistcoat, variants: adjustable inflatable waistcoat classic adult, version:(S);(XL); (L) (M) (S) ;adjustable inflatable waistcoat classic

Completeness

Ortorent respiratory tract cleansing system;Adjustable classic adult inflatable waistcoat, version (L);Adjustable classic adult inflatable waistcoat, version (M);Adjustable classic child inflatable waistcoat, version (134-140);Inflatable child inflatable w

Average MTBF

10000

Warranty period of operation

B1/B8 2100/900 MHz

Average service life, years

5 year

Treatment with disinfectants

possibly

Special fasteners on the chest side of the waistcoat and Velcro fasteners on the shoulders for easy adjustment of the tightness

availability

Therapy is automatically terminated after passing all programming points

availability

Possibility to change previously created and new programme modes before starting therapy

availability

Possibility of using the standard mode or creating new therapy programmes

availability

Air hoses connect the inflatable waistcoat to the pulse air generator by screwing into special ports.

availability

Resumption of therapy by repeated pressing of the control pear.

availability

The control pear can be used in place of the ON/OFF buttons to pause or resume pulse generator activity

availability

Attached pulse air generator controls the inflatable waistcoat and delivers vibrations to the chest wall.

availability

Preset treatment time displayed in countdown to zero mode

availability

Possibility to set own therapy programme (up to 8 programming points) with indication of own values for each point

availability

The inflatable chamber in the waistcoat has a closed cell structure

availability

Individual adjustment of the treatment time during which the values will increase from initial to final values (in per cent)

availability

Pulse air generator supports soft start mode: gradual ramping up of therapy mode to the selected frequency and e

availability

Automatic switching of the product to sleep mode (stopping the air jet supply to the pneumatic waistcoat through flexible hoses)

availability

The air jet is switched off by pressing the appropriate openings for connecting the flexible hoses.

availability

Supply of air jet (with specified oscillation frequency, specified pressure value, during specified period of time) in s

availability

Possibility of air jetting through appropriate openings for connection of flexible hoses for pre-filling

availability

The control panel displays the counter of worked time, in hours and minutes.

availability

Time of establishment of working mode less than 3 minutes

availability

Overall system dimensions (width), mm

340 mm

Overall dimensions of the system (depth), mm

332 mm

Overall dimensions of the system (height), mm

250 mm

Air hose (length of one tube),mm

1500 mm

Air hose (radius),mm

30 mm

Weight of air hose,kg

3 kg

Time to establish operating mode

Continuous operation (hours per day)

Mains power supply

230 V

Mains power supply

SBVVBG

Power consumption of pulse air generator, VA

450

Change of values of supplied air jet pressure (oscillation pressure), inclusive with adjustment step 0,4 kPa.

0.4...4

Range of therapy time, min.

1...60

Step of time adjustment

Total volume of inflatable chamber, litres

Inflatable chamber as part of the waistcoat withstands internal pressure without rupture or deformation during the test, kPa

Weight of system , kg

14 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
