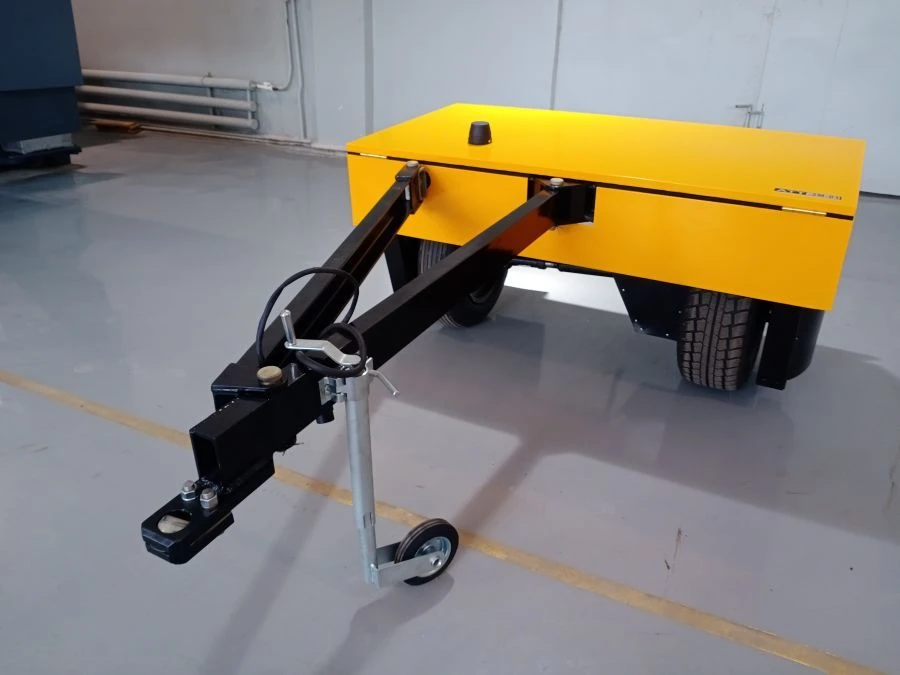

Aerodrome brake trolley ATT-2M-01

The ATT-2M-01 trolley is designed to determine the braking conditions of aviation pneumatic wheels by the value of the coefficient of adhesion at civil aviation airports with paved runways.
The ATT-2M-01 trolley retains its parameters under the influence of climatic factors corresponding to the "TU" version of category I according to GOST 15150-69.

Main technical characteristics:
Clutch coefficient measurement range: 0 - 0.65
Discreteness of traction coefficient reading: 0.01
Clutch coefficient determination error not more than: ± 0.01
Brake bogie movement speed:
- in the clutch coefficient measurement mode,km/h: 65+5;
- in the mode of transporting, km/h: up to 75.
Operating temperature range, C: from plus 35 to minus 30
Atmospheric pressure, hPa: 700-1070.
