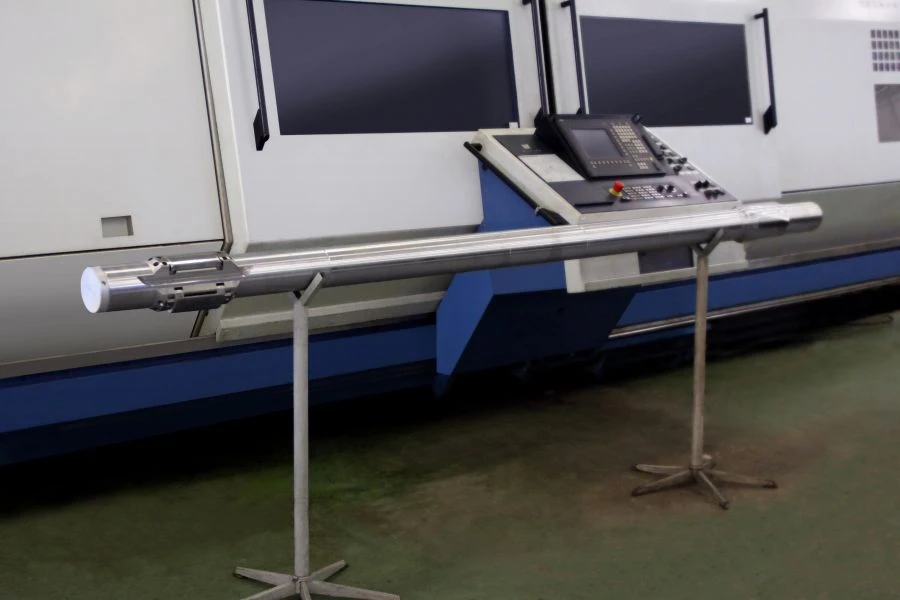

Advanced Drilling Logging System ZTS-48 with Acoustic and Hydraulic Communication Channels

Available for Import

Advanced Drilling Logging System ZTS-48 for Enhanced Data Acquisition

Precision Measurement Tools

Manufacturer: GERS TECHNOLOGY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The system can have a number of versions and different filling depending on the modification in accordance with the customer's requirements. This M/LWD system is used for high-tech services in the drilling process. The system consists of downhole equipment and surface equipment. The downhole equipment contains downhole, measuring and transmitting parts, as well as a set of pipe equipment and a Power Module. The downhole equipment is powered by rechargeable or lithium batteries. The ground equipment consists of receiving, processing and displaying parts, as well as auxiliary equipment, a set of tools and accessories, a container for transporting downhole instrumentation and ground equipment and a container for transporting tubular equipment.

Specifications

Composition of downhole part of downhole equipment

Rotor controlled system

Measured parameters of rotary steerable system

Pressure (in-column and downhole), gamma, zenith angle, azimuth

Composition of measuring part of downhole apparatus

Inclinometer module, gamma logging module, electromagnetic logging module, radioactive logging module, gamma gamma lithodensity logging module

Composition of the transmitting part of the downhole equipment

Pulsar hydraulic, acoustic transmitter, acoustic transmitter module

Composition of pipe equipment set

Pipes, translators, calibrators, lifting spigot, circulating valve, hydraulic valve, power module, connector

Composition of the receiving part of the ground equipment

Pressure sensor, speed sensor, weight sensor, depth gauge electronics unit

Composition of processing part of ground equipment

Special computer programme

Composition of the displaying part of the ground equipment

Driller's console, central interface unit

Composition of auxiliary equipment

Technologist terminal, interface converter, battery testing unit, distribution unit

Diameter of the rotor steerable system barrel

155.6 mm

Total length of rotary steerable system

6213 mm

Weight of rotor controlled system

435 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
