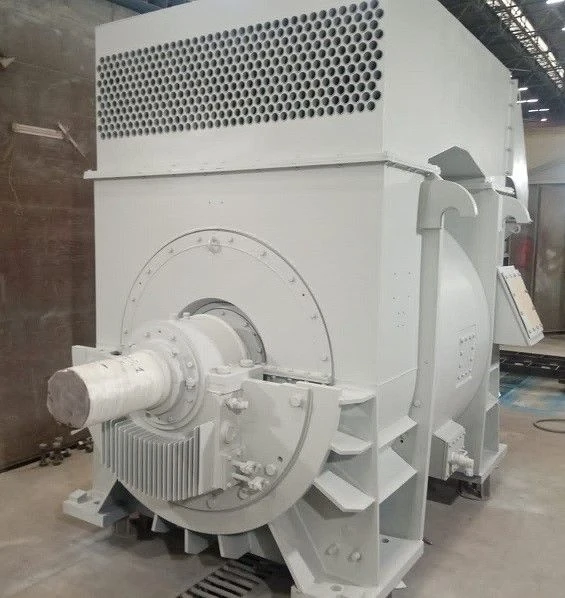

ADO-1600/750UHL3 Three-Phase Asynchronous Electric Motor for Various Mechanisms

Electric motor three-phase asynchronous with squirrel cage rotor ADO-1600/750 UHL3 general industrial version, designed to drive various mechanisms: mills, crushers, pumps, etc. The main standard for the product is GOST IEC 60034-1-2014. Structural design - IM1001.

The electric motor has shielded plain bearings with crankcase lubrication system. Insulation of stator winding is made on thermosetting binders with heat resistance class "F" GOST 8865-93 with temperature use at the level of class "B". The cooling method is ICA01A61.

The electric motor is designed for operation in the environment, the nominal value of climatic factors of which correspond to the macroclimatic region with moderate and cold climate of placement category 3 according to GOST 15150-69. The direction of rotation is right or left.
