Available for Import

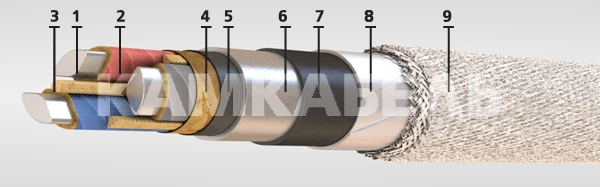

AAБВ-6 3x150 Aluminum Conductor Power Cable for Underground Use
Manufacturer:
KAMSKY CABLE LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cables are designed for operation in macroclimatic regions with temperate and cold climate. Cables are designed for operation in the ground (trenches) with medium and high corrosivity with the presence of stray currents, as well as with high corrosivity and the absence of stray currents, if during operation the cables are not subjected to tensile forces. Cables with non-flowing insulating impregnation composition (CAABv) are intended for laying on vertical and inclined sections of routes without limitation of level difference.
Specifications
Mark
AABV-6
Number and cross section of conductors, pcs x mm2
3?150
Estimated cable weight, kg/km
4152
Outer diameter
52.4 mm
Rated DC voltage
15 kV
Rated AC voltage with frequency 50 Hz
6 kV
Operating temperature range
-50...50 °C
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
