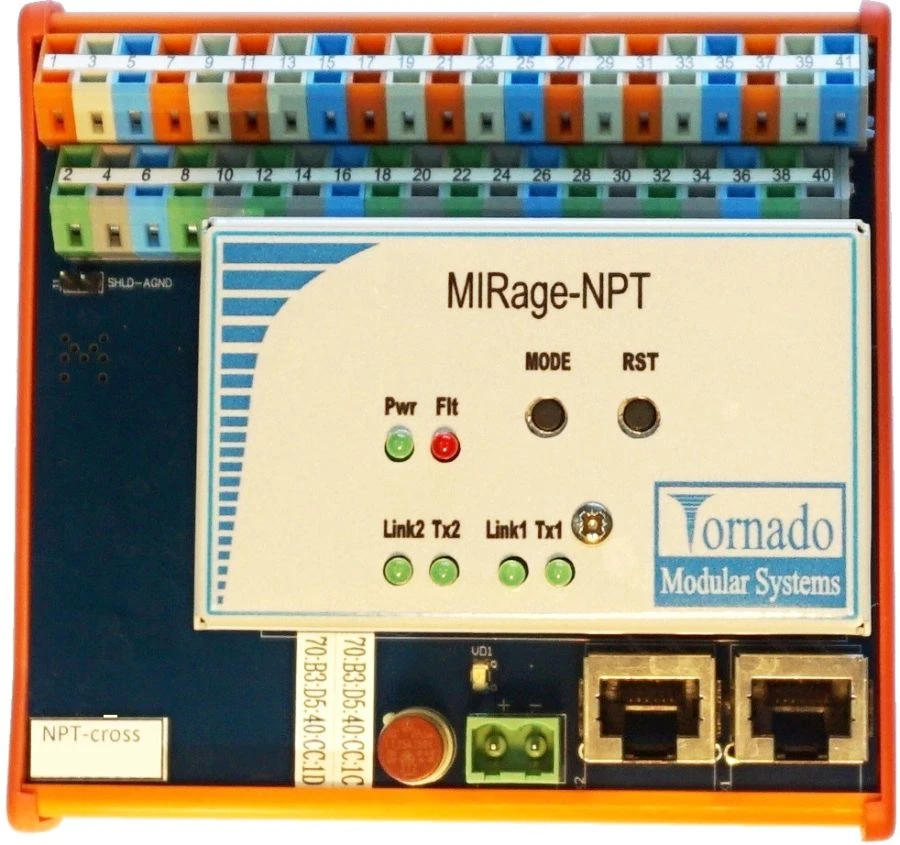

8-Channel Signal Input Device for Resistance Temperature Sensors (MIRage-NPT) - Accurate Temperature Measurement

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NPT devices are designed to measure temperatures using resistance thermocouples (RTDs) of different graduations and transmit the measured values via redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NPT devices have 8 measuring channels (IR). The interface of each IR assumes connection of sensors on 4-wire, 3-wire and 2-wire scheme. MIRage-NPT devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of measuring channels

8 pcs

Interface type

Ethernet 10/100BaseTX - 2 channels

Request response time at 100 Mbit network speed, no more than

Data transfer rate

Data exchange protocol

Modbus TCP/UDP slave

External supply voltage (+/- 15%)

24 V

Input impedance, more than

1 gOhm

Galvanic insulation

Group

Overall dimensions

114x108x111 mm

Weight, not more

400 year

Mechanical design

DIN rail mounting

Wago terminal block, conductor cross-section up to

2.5 mm²

Operating temperature range

-25...70 °C

Consumption current, max.

95 mA

Measured resistance range at gain x1

0...3200 ohm

Maximum permissible input voltage

Plus/minus 10 V

Maximum permissible input voltage

-10...10 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
