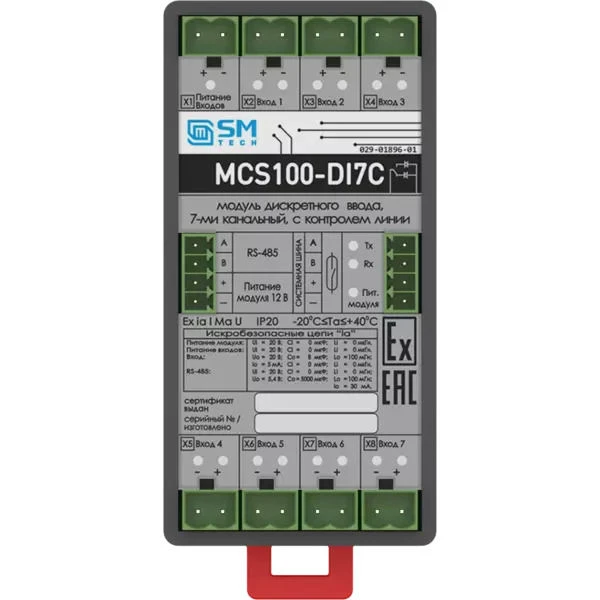

7-Channel Discrete Input Module with Line Monitoring MCS100-DI7C for Signal Processing

Digital Signal Converters

Manufacturer: SPBEX-MINING LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Module discrete input, 7-channel, with line control MCS100-DI7C for receiving and processing the state of input potential-free signals type "dry contact" with control of the line of connection of the sensor.

Specifications

Weight

0.13 kg

Overall dimensions

122mmx55.5mmx32mm

Mounting the device

DIN rail: -type, width 35 mm, recommended height 7.5 mm/15 mm

A communication protocol used to transmit information

ModBus-RTU; ModBus-ASCII; internal

Communication interface

RS-485

Type of discrete input sensor:

Switching devices (contacts of buttons, switches, reed switches, relays, etc.); sensors having a transistor output; n-p-n-type (open collector) and/or p-n-p-type keys.

Power consumption, max.

1 W

Rated supply voltage

B1/B8 2100/900 MHz V

Protection class against electric shock

III

Degree of protection against external influences

IP20

Operating temperature

-20...40 °C

Explosion protection marking

Ex ia I Ma U*

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
