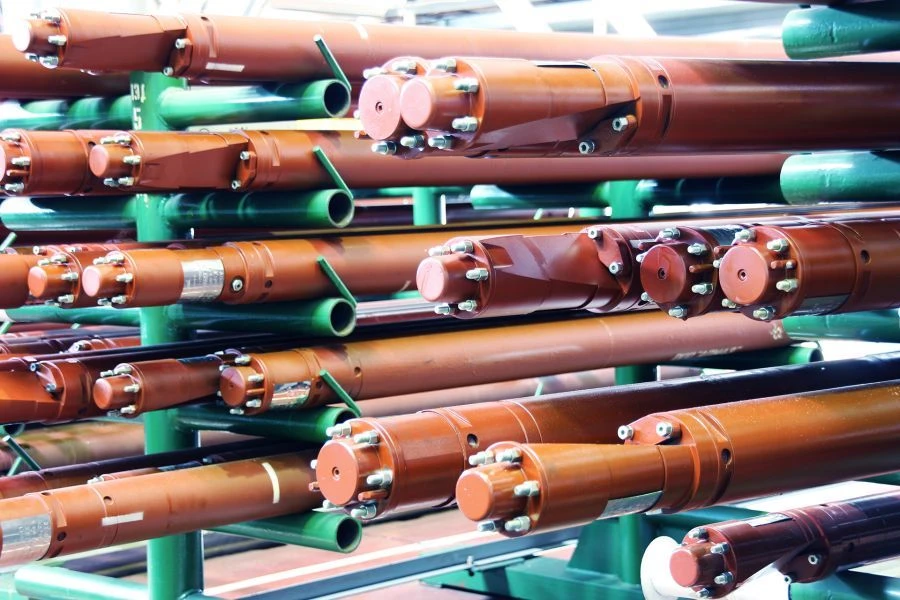

Electric submersible valve motors of VED-Ya series are designed for use as a regulated drive of electric submersible pumps for pumping reservoir fluid from oil wells.
The motor consists of a fixed part - stator and a rotating part - rotor. The stator winding (three coils shifted by 120°) is placed in the stator grooves. The rotor consists of packages, which in turn contain permanent magnets in their construction. The principle of operation of the valve motor is the precise positioning of the permanent magnets on the rotor in relation to the formed peak of the electromagnetic pulse on the phase electric windings.
