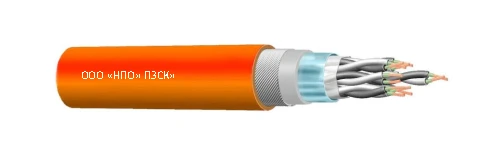

كابل طاقة عالمي KRUEL-SK-(E)R(E)(B,K,S)-(v)-ng(A)-LS

كابل طاقة عالمي KRUEL-SK-(E)R(E)(B,K,S)-(v)-ng(A)-LS

العلامة التجارية: KRUEL
$9 - $60 USD
MOQ: 100 meters

الميزات الرئيسية

Core material: Copper, tinned copper(l), aluminum (A), aluminum alloy (As)
Nominal cross-section of conductive cores: 1...1000 بوصة
Ambient temperature during cable operation: -60...50 مليون م³
Presence of individual and/or shared metal shielding: No shield, copper tape shield (E), copper wire shield (Em), tinned copper wire shield (El), combined, aluminofoil composite material and tinned copper wire shield (Ek)

المزيد من KRUEL

Universal Fire-Resistant Power Cable KRUEL-SK-(E)V(E)(B,K,S)-(v)-ng(A)-FRLS

كابل طاقة عالمي مقاوم للحريق كRUEL-SK-(E)V(E)(B,K,S)

$1.50-$18
Universal Power Cable KRUEL-SK-(E)Rp(E)(B,K,S)-(v)-ng(A)

كابل طاقة عالمي كRUEL-SK-(E)Rp(E)(B,K,S)-(v)-ng(A)

$1.80-$18
Universal Fire-Resistant Power Cable KRUEL-SK-(E)T(E)(B,K,S)-(v)-ng(A)-FR

كابل طاقة عالمي مقاوم للحريق كRUEL-SK-(E)T(E)(B,K,S)-(v)-ng(A)-FR

$0.90-$6
Universal Power Cable KRUEL-SK-(E)V(E)(B,K,S)-(v)-ng(A)-LSLTx

كابل طاقة عالمي كRUEL-SK-(E)V(E)(B,K,S)-(v)-ng(A)-LSLTx

$1.20-$18
Universal Thermoelectric Cable KRUEL-TK-(E)V(E)(B,K,S)-(z)-ng(A)-FRLS

كابل حراري كهربائي عالمي كRUEL-TK-(E)V(E)(B,K,S)-(z)-ng(A)-FRLS

$1.20-$12
Universal Thermoelectric Cable KRUEL-TK-(E)R(E)(B,K,S)-(z)-ng(A)-LS

كابل حراري كهربائي عالمي KRUEL-TK-(E)R(E)(B,K,S)-(z)-ng(A)-LS

$1.50-$18
Universal Fire-Resistant Thermoelectric Cable KRUEL-TK-(E)P(E)(B,K,S)-(z)-ng(A)-FRHF

كابل حراري كهربائي عالمي كRUEL-TK-(E)P(E)(B,K,S)

$1.20-$9.60

الوصف

Full product description (purpose, design features, advantages)
Universal power cable does not spread combustion, with reduced smoke and gas emission, with cores made of copper, or copper coated, or aluminium, or aluminium coated wires, with the number of cores from 1 to 10, nominal cross-section of cores from 1.0 to 1000 mm2, with insulation made of silicone heat-resistant rubber, shielded or unshielded, armoured or unarmoured, for rated voltages of 660 V and 1000 V AC 50 Hz or DC 1000 V and 1500 V, designed for transmission and distribution of electrical energy in networks and electrical installations.
Cables are used for connection of stationary consumers, as well as power connection of mobile equipment.
Cables are allowed to be used in explosive environments and at underground facilities, provided that they meet the requirements for design and technical characteristics.

المواصفات

Core material
Copper, tinned copper(l), aluminum (A), aluminum alloy (As)
Nominal cross-section of conductive cores
1...1000 بوصة
Ambient temperature during cable operation
-60...50 مليون م³
Presence of individual and/or shared metal shielding
No shield, copper tape shield (E), copper wire shield (Em), tinned copper wire shield (El), combined, aluminofoil composite material and tinned copper wire shield (Ek)
Availability of reservations
No armor, armor made of galvanized steel bands (B), aluminum alloy bands (Ba), corrugated tape laminated with polymer (Bg), galvanized steel wires (K), galvanized steel wires over outer sheath (Kg), wires of
Fire hazard class
P1b.8.2.2.2.2.
Operational design
M, X, UV, Tc (Tc125, Tc200)
Climatic version
UHL, UHL1, CHL, CHL1, AHL, T
Mark
KRUEL-SK-(E)T(E)(B,K,S)-(c)-ng(A)-LS
Design
Multiconductor TWAs (m), single wire TWAs (o), round TWAs (k), sector or segmental TWAs (c)
Cable shape
Round, flat
Insulation material
Silicone rubber (P)
Sheath material
Water-absorbing elements (c), filled with silicone compound (pz)
Core diameter
1.13...41.6 مم
Size (Number of cores x Cross-section)
1x1.0 - 1x1000; 2x1.0 - 2x240; 3x1.0 - 3x400; 4x1.0 - 4x400; 5x1.0 - 5x240; 6-10x1.0-16
Sheath material
according to cable version
Number of cores
1...10 ميكروغراي
Number of wires in the core
1...53 ميكروغراي
Number of conductive cores
1...10
Rated AC voltage
0.66...1 مليار م³
