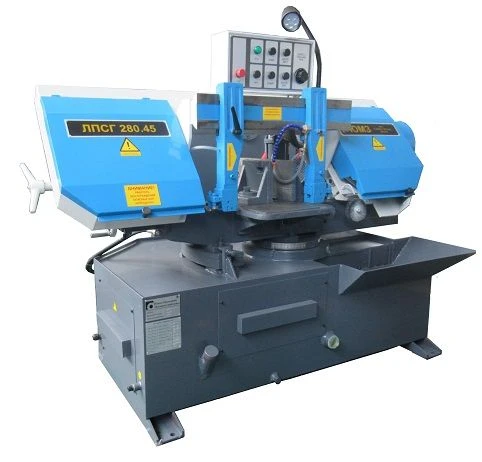

آلة المنشار الشريطي شبه الأوتوماتيكية مع طاولة دوارة LPSG280.45

آلة المنشار الشريطي شبه الأوتوماتيكية مع طاولة دوارة LPSG280.45

العلامة التجارية: null
$1,500 - $4,200 USD
MOQ: 2 pieces

الميزات الرئيسية

Diameter of the wheel to be cut: 280 مم
Size of the square to be cut: 280x280 مم
Saw blade speed: 29/40/55/77
Cutting angle: 90-45

الوصف

Semi-automatic band sawing machine with rotary table model LPSG280.45 is designed for cutting rolled products and profiles of steel and alloys of various grades. Two-column design of the machine provides high rigidity of the structure and precision in sawing.

The machine is equipped with a swivelling frame, which allows cutting at an angle of 45º. The machine provides cutting with quick changeover and high precision.

المواصفات

Diameter of the wheel to be cut
280 مم
Size of the square to be cut
280x280 مم
Saw blade speed
29/40/55/77
Cutting angle
90-45
Diameter of the wheel to be cut at an angle of 45º
221 مم
Size of square to be cut at an angle of 45º
220x220 مم
Size of the rectangle to be cut
250x280 مم
Size of rectangle to be cut at an angle of 45º
320x220 مم
Saw blade size
27x0,9x3700 مم
