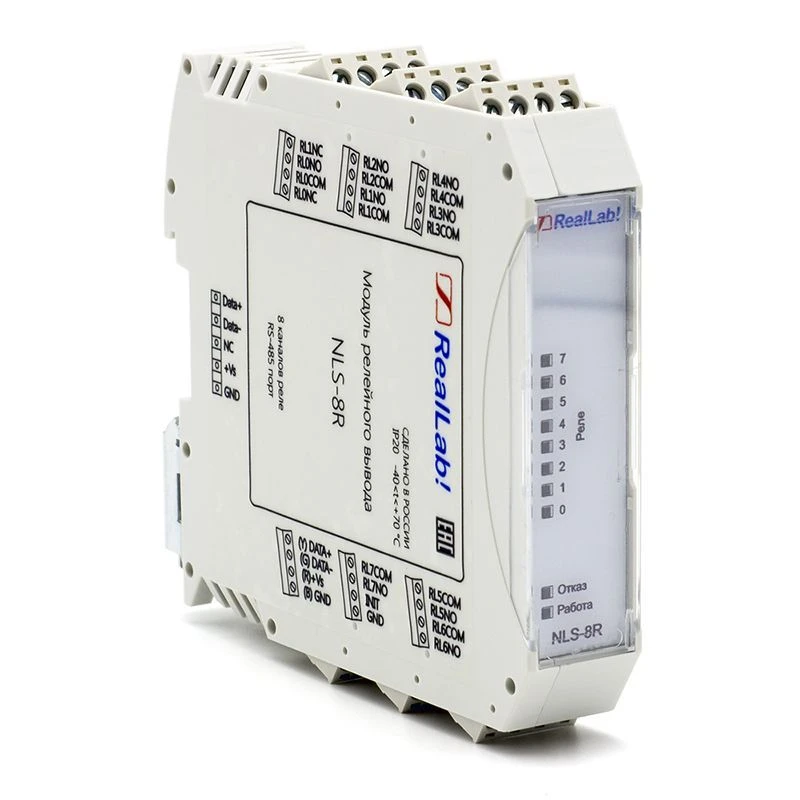

Purpose:designed to output signals from relaysConnection:8 relays 2 A =30 V or 0,25 A ~220 V per one relay contact.To each terminal of the module is connected to 2 relay contacts (contacts are connected in parallel), ie. the actual current of the module terminal is approximately equal to 4 A at 30 V or 0,5 A at 220 V6 relays with normally open contacts and 2 - with switching contactsProtection:protection by RS-485 interface and power supplyTemperature:operating temperature range from -40 to +70 SIInterface connection:RS-485 interfaceProtocols:default protocol - DCON (ADAM-compatible) and MODBUS RTU (enabled by software)Power supply:10 to 30VPower consumption:no more than 0.3 / 1.3W (with relays off / on)Design:slot design, bus connector for RS-485 interface and power supplyMounting:din-rail mountingDimensions (H x W x D):109x22.5x113mm
