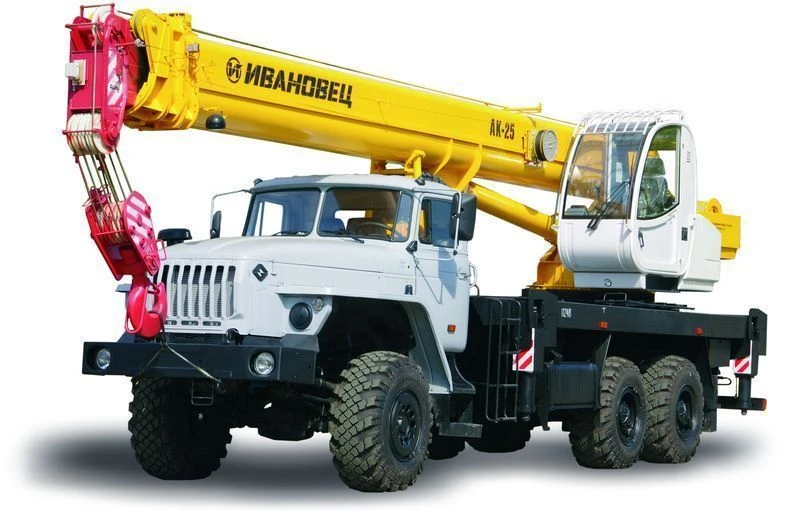

The truck crane KS-45717-1R is designed for construction and assembly and handling operations with ordinary cargoes at dispersed sites.
Base chassis - URAL-4320 of ecological class 5
Maximum lifting capacity - 25 tonnes
Crane mechanisms drive - hydraulic with a possibility to combine working operations
Boom - telescopic four-section boom. Boom telescoping - by hydraulic cylinders and chain hoist system. The material of the boom metal structures is S700MC steel. In order to increase the boom length and under boom space it is possible to equip the boom with a 9.0 m long gooseneck, which can be installed parallel to the main boom or at an angle of 30 degrees.
Limitation of lifting capacity and fixing of crane operation parameters - by means of microprocessor-based lifting capacity limiter with digital indication of information and built-in parameter recorder.
