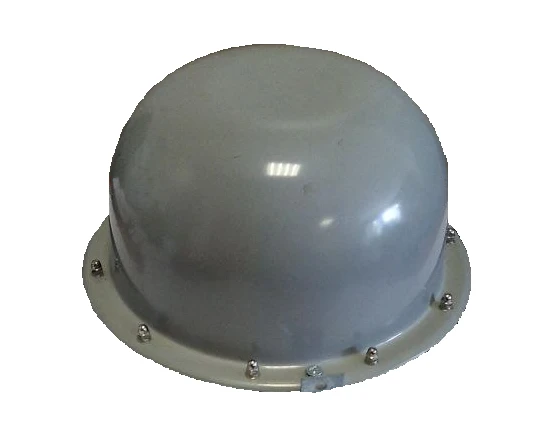

هوائي خارجي لنظام الاتصالات الفضائية المتعددة الوظائف "غونيتس-D1M

هوائي خارجي لنظام الاتصالات الفضائية المتعددة الوظائف "غونيتس-D1M

العلامة التجارية: Gonets
$90 - $300 USD
MOQ: 20 pieces

الميزات الرئيسية

Overall dimensions without high-frequency feeder: 200x100 mm (diameter x height)
Maximum permissible power: 15 سم³
Transmission frequency range: 312...315 طن
Receive frequency range: 387...390 طن

الوصف

The external receiving and transmitting antenna Gonets-D1M (Gonets-V) is designed to provide reception and transmission of radio signals through communication channels as part of transportable subscriber terminals of the Gonets D1M multifunctional mobile satellite communication system under conditions of placement on stationary and mobile objects, including water and land vehicles.

المواصفات

Overall dimensions without high-frequency feeder
200x100 mm (diameter x height)
Maximum permissible power
15 سم³
Transmission frequency range
312...315 طن
Receive frequency range
387...390 طن
Voltage standing wave coefficient, not more
1,8
Gain factor in the sector 15 degrees from normal to the reference plane, not less than
Plus 2 dBi
Gain factor in the sector 75 degrees from normal, not less than
0 dBi
Antenna directional width in azimuth (in antenna reference plane), not less than
360
Antenna Polarisation
Linear, vertical
Input impedance
SBVVBG ياردة³
Type
Individual
View
Satellite
Type by orientation
Omnidirectional
Standing wave coefficient (VSWR)
1.8
