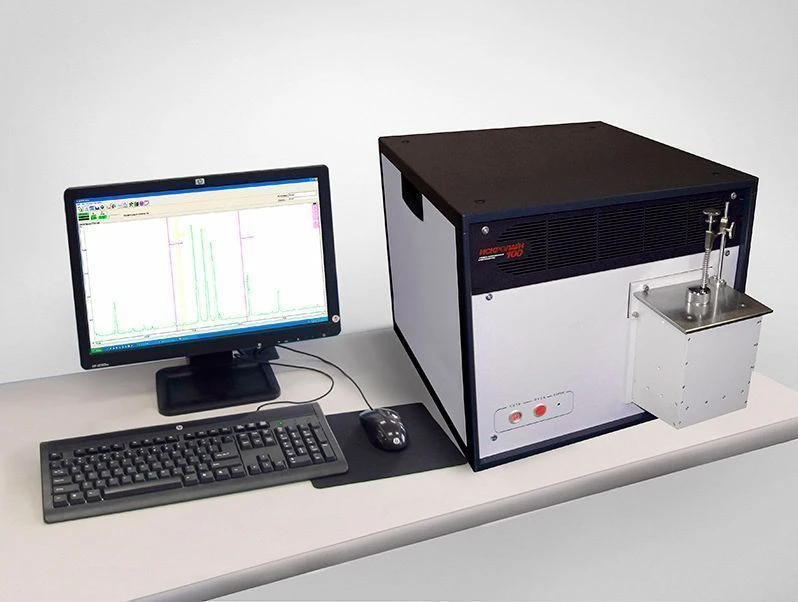

مطياف انبعاثي لتحليل المعادن - إيسكرولين 60

مطياف انبعاثي لتحليل المعادن - إيسكرولين 60

العلامة التجارية: ISKROLINE
$15,000 - $48,000 USD
MOQ: 1 units

الميزات الرئيسية

Operating spectral range, nm: 174 — 435
Number of photodetectors: 7 ميكروغراي
Type: Optical emission spectrometer
Name: SPARKLINE 60

المزيد من ISKROLINE

Emission Spectrometer ISKROLINE 250K

مطياف الانبعاث إيسكولين 250K

$15,000-$48,000
Optical Emission Spectrometer for Quick Metal Analysis - ISKROLINE 300

مقياس الطيف الضوئي للتحليل السريع للمعادن - إيسكرولاين 300

$42,000-$150,000
Portable Emission Spectrometer for Alloys ISKROLIGHT 500

طيف ضوء انبعاث محمول لتحليل السبائك ISKROLIGHT 500

$15,000-$48,000

الوصف

The instrument is designed for rapid and accurate spectral analysis of metals and alloys with different bases (Fe, Al, Cu, Zn, Pb, Sn, Sb, Ni, Ti, Co, Mg). More than 70 chemical elements (including sulphur, phosphorus and carbon). Incoming inspection and certification analysis.

Express analysis in the process of melting. Grade determination. Any spectral lines in the range 174-435 nm (including phosphorus, sulphur and carbon lines) with a resolution of 0.02-0.03 nm are available.

The ISKROLINE 60 is an economical spark spectrometer model with best-in-class price/analytical capability ratio with high quality manufacturing and reliability. Iskroline 60 emission spectrometer is included in the State Register of measuring instruments of Russia, Kazakhstan, Belarus and others.

المواصفات

Operating spectral range, nm
174 — 435
Number of photodetectors
7 ميكروغراي
Type
Optical emission spectrometer
Name
SPARKLINE 60
Type of photodetectors
linear pulse detectors
Method of oxygen removal in the spectrograph
vacuuming
Spectral resolution, nm max.
0,046
Diffraction grating constant, str/mm
2100
Type of diffraction grating
hologram
The diameter of Rowland's circle
330 مم
Optical system
Paschena-Runge
Measuring range of mass fractions of elements
0.0005 — 99.9 %
