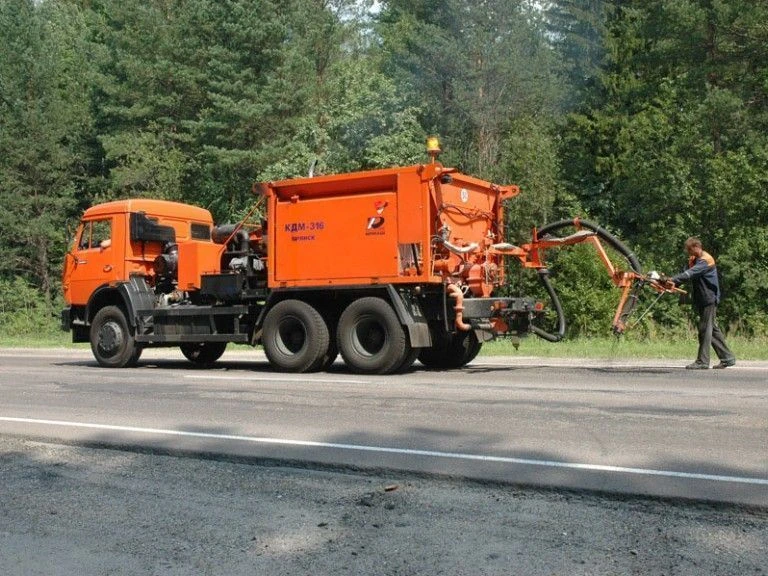

آلة إصلاح الطرق الشاملة ك دي إم-316-01

آلة إصلاح الطرق الشاملة ك دي إم-316-01

العلامة التجارية: GKMP
$42,000 - $150,000 USD
MOQ: 1 pieces

الميزات الرئيسية

Crushed stone hopper capacity: 4.8 هكتار
Emulsion tank volume: 1100
Permitted maximum transport speed: SBVVBG
Base machine type: chassis - Kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs

المزيد من GKMP

Comprehensive Road Maintenance Machine KDM-320-43

آلة الصيانة الشاملة للطرق ك دي إم -320-43

$42,000-$150,000
Comprehensive Road Machine for Pothole Repair KDM-316-02

آلة إصلاح الطرق الشاملة ك.د.م-316-02

$48,000-$150,000
Comprehensive Road Machine KDM-316-03 for Winter Maintenance

آلة الطرق الشاملة ك دي إم - 316 - 03

$60,000-$180,000
Comprehensive Road Maintenance Machine KDM-320-31

آلة صيانة الطرق الشاملة ك.د.م-320-31

$42,000-$150,000

الوصف

Application of equipment for patching repair by pneumatic spraying method allows: to do without potholes and without a roller; quickly and qualitatively fill potholes and cracks of asphalt concrete pavement; almost immediately after the work to resume traffic; to perform work at temperatures from +5 ° C to + 40 ° C; to carry out high-quality repair on wet pavement; to provide a longer service life of the road surface in comparison with traditional technologies. The front rotary mouldboard allows to carry out summer works in urban conditions and on federal highways.

المواصفات

Crushed stone hopper capacity
4.8 هكتار
Emulsion tank volume
1100
Permitted maximum transport speed
SBVVBG
Base machine type
chassis - Kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs
Engine type
Diesel
Emulsion heating type
Liquid fuel burner
Climatic version
UHL 1
Availability of air conditioning system
depending on the chassis purchased
Availability of heater
availability
Water tank capacity
820
Gross weight
22570 م² مساحة سكنية
Overall dimensions /length /length at maximum blade angle
10700/11420 مم
Overall dimensions / height
3180 مم
Overall dimensions /width /width at maximum blade angle
3350/3220 مم
Patching equipment / engine
diesel; four-stroke; air-cooled
Patching equipment / method of supplying process materials: crushed stone
screws and compressed air
Patching equipment / method of supplying technological materials: bitumen emulsion; water
pressurised diaphragm pump
Patching equipment / method of supplying process materials: air
pressurised blower
Front rotary blade / blade lifting and turning drive
Hydraulic
Front swivel blade / largest blade rotation angle
+/-35°
Front rotary blade / weight, not more:
700 م² مساحة سكنية
