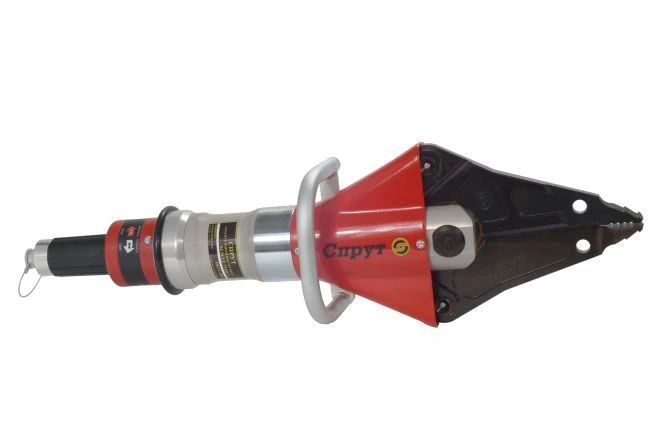

These cranes are designed for biting of armature, pipes, angles; cutting of strip and sheet metal; lifting and moving of heavy loads.
Technical characteristics:
Maximum cutting force, kN - 360.0
for work in narrow slots:
width, mm 86
depth, mm 245
at width, mm 96
depth, mm 360
Opening of blade ends, mm - 316,0
Maximum pulling force, kN - 65,7
Biting:
- bar, mm up to 30
- strip, mm up to 10
Weight, kg - 13,5
Overall dimensions (h/w/h) 785/225/155
