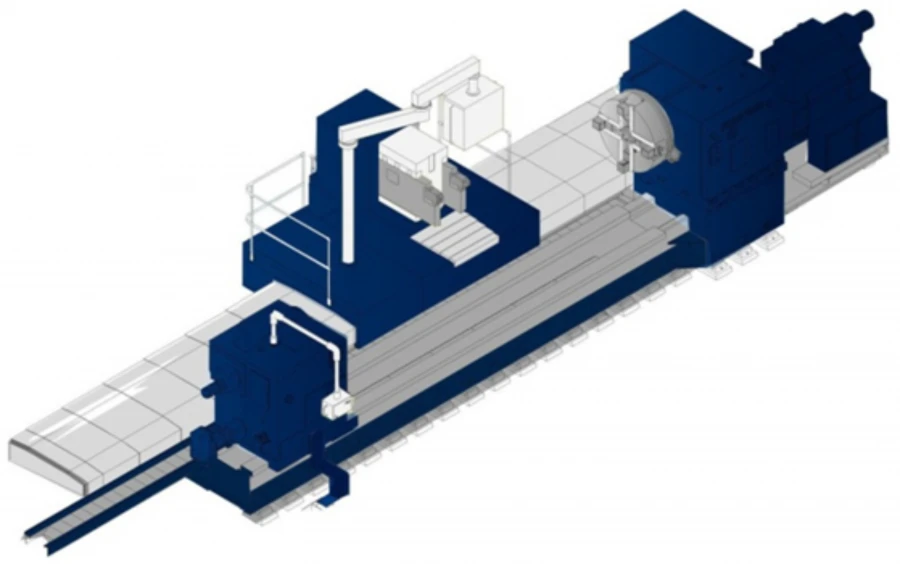

Toking machines CA1800F3 (with modifications CA1800C30F3, CA1800C50F3, CA1800C70F3, CA1800C80F3, CA1800C100F3, CA1800C120F3, CA1800C140F3, CA1800C160F3, ??1800?180?3, ??1800?200?3, ??1800?220?3, ??1800?240?3) with through slides provide optimal technology of machining of long parts. Due to the fact that the slides can bypass the lunettes, go behind the spindle headstock and tailstock, the workpiece is machined along the entire length without reinstallation.
The machine bed is made of solid cast iron sections, with 4 or 5 guideways: 2 or 3 rolling guides for slides, 2 sliding guides for tailstock and lunettes. The sections are fastened together with high-strength bolts and pins.
Spindle headstock. Range switching is automatic. Speed control within each range is stepless.
Caliper. Two slides move along the Z-axis on rolling guides. Slides are mounted on the slides, which move along the X axis.
